Autonomous Underwater Vehicles (AUVs) are machines designed to
operate underwater without direct pilot control and are untethered,
allowing them to navigate freely over long distances according to a
pre-defined operational plan, distinguishing them from Remotely
Operated Vehicles (ROVs). They are used in a range of operations,
including:
•
Seabed mapping
•
Underwater infrastructure location and monitoring
•
Wreck location and survey
•
Oceanographic conditions and underwater ecosystem studies.
•
Environmental monitoring (water quality, contaminant
detection,emperature variations, etc.).
•
Security applications such as mine detection and monitoring of
sensitive areas
Like ROVs, these machines can be classified according to their payload,
the tasks they can perform, and the operating depths at which they
can operate. Many are multi-ton machines designed to operate for long
periods of time, requiring them to be deployed from adequate surface
supports, limiting their use to specialized companies, and operations
with significant financial support.
However, advances in miniaturization and the reduction of the cost of
electronic components and batteries have allowed manufacturers to
develop ranges of light machines that are more affordable in terms of
purchase and operating costs, making them suitable for operations
with smaller budgets and allowing the companies that employ them to
be better prepared for the operations they are contracted to perform.
This category of machines is designed to be easily carried by one or
two people, which, in addition to their more reduced cost, gives them
the following advantages:
•
Their limited weight and size make them easy to transport and
deploy, even in remote or hard-to-reach locations.
•
In addition to the above, they can be deployed and recovered using
small, non-specialized surface supports.
•
Also related to above, they require smaller teams to operate than
large machines.
•
Depending on the model, they can be utilized for specific tasks
similar to those assigned to larger units.
•
They have a smaller footprint than several-tonne vehicles, making
them suitable for operations in confined spaces or ecologically
sensitive areas.
Like all tools, these machines have limitations, mostly related to their
small size:
•
They offer limited internal space for sensors and other equipment,
which restricts their functionality compared to larger machines.
•
Their small size also results in smaller batteries, which, despite
their motors' more reduced energy consumption, often result in
shorter operational durations due to the limited battery capacity.
•
They may be unable to operate at very deep depths due to
structural limitations.
•
Their limited on-board power reserve may necessitate more
frequent recovery and launching. More frequent data offloading
and external processing may also be required for the same
reasons.
•
The limited power of small motors in some of these machines
makes them more susceptible to currents and other environmental
factors than larger, typically more powerful machines, which can
affect their operational capabilities.
Despite their limitations, the advantages offered by these machines
make them a complement to larger machines and allow small
companies to enter new markets, in addition to the advantage they
provide by enabling teams to study a site before starting operations
and organize according to what is discovered, which can substantially
save time and money, considering the operating price of a DSV.
The following list provides an overview of the types of machines
manufacturers offer. Of course, it must be kept in mind that the
market offer is not limited to this list, as these manufacturers and
their competitors constantly improve their offerings.
Please note that the machines are classified from the lighter to the
heavier models.

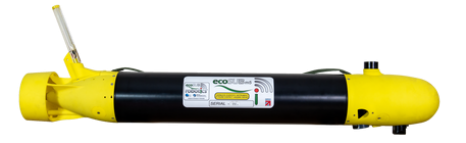

ecoSUBm5
- Manufacturer: ecoSUB Robotics
Address: Unit 16, Camberley Business Centre -
racebridge, Camberley, Surrey GU15 3DP UK
Phone: +44 (0)333 800 8818
Website: https://www.ecosub.uk/
- Weight in air and size: 4 kg / 660 mm long x 111 mm diameter
- Operating depth: 500 m
- Endurance: 12 hours
- Maximum speed: 1.9 knots
- Applications: Seabed and infrastructure survey, detailed inspection,
benthic surveys, search and rescue, area security,
hydrocarbon detection, oceanographic data collection
and communication gateway applications.
- Website link: https://www.ecosub.uk/ecosubu5---500-m-rated-
micro-auv.html
Hydrus Micro AUV
- Manufacturer: Advanced Navigation
Address: Level 12, 255 George Street - Sydney NSW
2000 - Australia
Phone: +61 2 9099 3800
Website: https://www.advancednavigation.com/
- Weight in air and size: 7.1 kg / 520 x 264 x 235 mm
- Operating depth: 300 m
- Endurance: 2 hours
- Maximum speed: 1.5 knots
- Applications: Seabed and infrastructure survey, detailed inspection,
benthic surveys, search and rescue, area security, and
military applications
- Website link: https://www.advancednavigation.com/robotics/micro-
auv/hydrus/

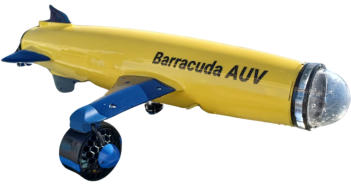

Barracuda AUV
- Manufacturer: Tampa Deep Sea Xplorers
Address: 14007 Clubhouse Circle, Apt. 706, Tampa,
Florida, 33618 - United States
Phone: +1 813-999-6043
Website: https://tampadeepseaxplorers.com/
- Weight in air and size: 12 kg / 1000 mm log. x 300 mm diam.
- Operating depth: 600 m
- Endurance: 4 to 5 hours
- Maximum speed: 0.5 to 6 knots
- Applications: Seabed imagery, environmental monitoring, wreckage
localization, and various inspections.
- Website link: https://tampadeepseaxplorers.com/barracuda-auv/

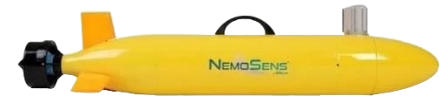

Nemosens
- Manufacturer: RTsys
Address: ZA de Kerloïc - Rue Jean-Noël Jégo, 56850
Caudan, Brittany - France
Phone: +33 297 898 580
Website: https://rtsys.eu/
- Weight in air and size: 10 kg / 1 m long. x 124 mm diam.
- Operating depth: 300 m
- Endurance: 8 hours
- Maximum speed: 8 knots
- Applications: Seabed imagery, environmental monitoring, wreckage
localization, and other civil applications.
- Website link: https://rtsys.eu/nemosens-micro-auv

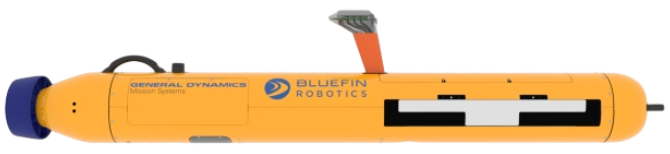

Bluefin-9
- Manufacturer: General dynamics
Address: General Dynamics Mission Systems -
15036 Conference Center Driven Chantilly, VA 20151
- USA
Phone: 1-877-449-0600
Website: https://gdmissionsystems.com/underwater-
vehicles/bluefin-robotics
- Weight in air and size: 70 kg / 242 cm long x 24 cm diameter
- Operating depth: 200 m
- Endurance: 8 hours at 3 knots speed
- Maximum speed: 6 knots
- Applications: Seabed and infrastructure survey and mapping,
detailed inspection, search and rescue, area security,
and military applications.
- Website link: https://gdmissionsystems.com/products/underwater-
vehicles/bluefin-9-autonomous-underwater-vehicle
ecoSUBm25
- Manufacturer: ecoSUB Robotics
Address: Unit 16, Camberley Business Centre -
Bracebridge, Camberley, Surrey GU15 3DP
United Kingdom
Phone: +44 (0)333 800 8818
Website: https://www.ecosub.uk/
- Weight in air and size: 12 kg / 1000 mm long. x 146 mm diam.
- Operating depth: 2500 m
- Endurance: 18 hours
- Maximum speed: 2 knots
- Applications: Seabed imagery, environmental monitoring, wreckage
localization, benthic surveys, search and rescue, area
security and various military applications
- Website link: https://www.ecosub.uk/ecosubm25---2500-m-rated-
small-auv.html

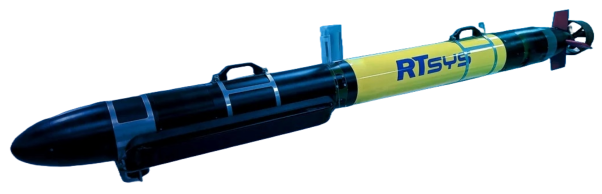

Comet-300
- Manufacturer: RTsys
Address: ZA de Kerloïc - Rue Jean-Noël Jégo, 56850
Caudan, Brittany - France
Phone: +33 297 898 580
Website: https://rtsys.eu/
- Weight in air and size: 32 kg / 1900 mm long x 150 mm diam
- Operating depth: 300 m
- Endurance: 20 hours
- Maximum speed: 10 knots
- Applications: Seabed imagery, environmental monitoring, wreckage
localization, and other civil applications.
- Website link: https://www.naval-technology.com/contractors/sonar/
rtsys/

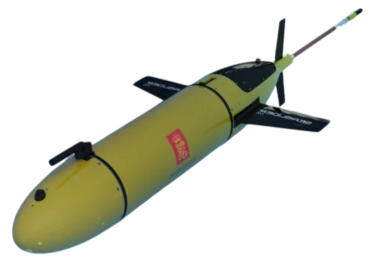

Seaglider
- Manufacturer: Hydroid (Kongsberg AUV division)
Address: 19210 33rd Avenue West, Suite A, Lynnwood,
WA, United States
Phone: +1 425 712 1107
Website: https://www.kongsberg.com/
- Weight in air and size: 52 kg / 0.43 to 1m long (configuration
dependent)
- Operating depth: 1000 m
- Endurance: Up to 10 months
- Maximum speed: 0.5 knots
- Applications:
This vehicle serves as a data collection tool for oceanographic
monitoring, pollution tracking, seafloor mapping, and various
surveillance activities.
Instead of an electrically driven propeller, the vehicle uses small
changes in buoyancy and wings to achieve forward motion using
adjustable ballast. It moves through the water in a sawtooth pattern,
surfacing frequently to determine its position, transmit collected
data, and receive commands via satellite telemetry. Navigation is
accomplished through GPS fixes while on the surface and internal
sensors that monitor the vehicle's heading, depth, and attitude during
dives.
- Website link: https://www.kongsberg.com/discovery/autonomous-
and-uncrewed-solutions/auv/

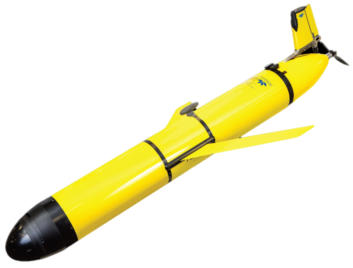

Slocum Glider
- Manufacturer: Teledyne marine
Address: Address: 1026 N Williamson Blvd, Daytona
Beach, United States
Website: https://www.teledynemarine.com/
- Weight in air and size: 60 kg
- Operating depth: 1,000 meters (standard model) or 200 meters
(shallow-water variant)
- Endurance: 12 months
- Maximum speed: 0.5 knots
- Applications: This machine has a similar design and applications as
the previously described Hydroid Seaglider.
- Website link: https://www.teledynemarine.com/brands/webb-
research/slocum-glider

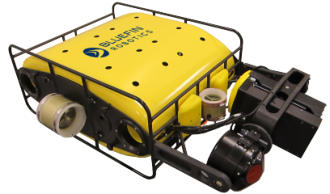

Bleufin HAUV
- Manufacturer: General dynamics
Address: 15036 Conference Center Driven Chantilly,
VA 20151 - USA
Phone: 1-877-449-0600
Website: https://gdmissionsystems.com/underwater-
vehicles/bluefin-robotics
- Weight in air and size: 73 kg / 133 x 93 x 38 cm
- Operating depth: 30 or 60 m
- Endurance: 3.5 hours
- Maximum speed: 0.5 to 1.5 knots
- Applications: Hulls and underwater structures inspection
- Website link: https://gdmissionsystems.com/products/underwater-
vehicles/bluefin-hauv

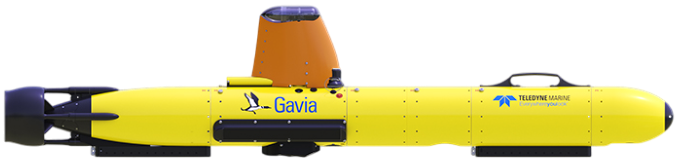

Gavia AUV
- Manufacturer: Teledyne marine
Address: 1026 N Williamson Blvd, Daytona Beach,
United States
Website: https://www.teledynemarine.com/
- Weight in air and size: 59 to 130 kg / 2.2 to 4.5 m - depending on the
configuration .
- Operating depth: 500 or 1000 m, depending on the configuration
- Endurance: 7-8 hours at 3 knots
- Maximum speed: 5.5 knots
- Applications: Seabed and infrastructure survey and mapping,
detailed inspection, , search and rescue, area security,
and military applications.
- Website link: https://www.teledynemarine.com/brands/gavia/gavia-
auv

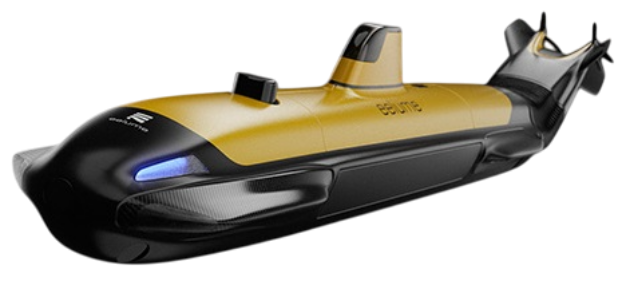

Eelume S-series - 300 S, 300 Cs, and 300 CXs
- Manufacturer: Eelume AS
Address: Transittgata 10A, 7042 Trondheim - Norway
Phone: +47 46 500 700
Website: https://www.eelume.com
- Weight in air and size: 45 to 60 kg (depending on the model) /
200 cm length x 20 cm width
- Operating depth: 300 m
- Endurance: 8 to 11 hours , depending on the model
- Maximum speed: 5 knots
- Applications:
Close-proximity imaging, photomosaic generation of subsea
environments, photogrammetry, bathymetric mapping of intricate
underwater terrain and structures, under-ice mapping, stop-and-
inspect functionalities, and more.
Note that this machine is equipped with an articulated tail that can be
oriented along the vertical axis, allowing it to maneuver up and down
more efficiently than other machines. This feature enables it to easily
follow the underwater profile, even in the presence of underwater
cliffs and structures.
- Website link: https://www.eelume.com/eelume-s-series
Eelume S-series - 600 S, 600 Cs, and 600 CXs
- Manufacturer: Eelume AS
Address: Transittgata 10A, 7042 Trondheim - Norway
Phone: +47 46 500 700
Website: https://www.eelume.com
- Weight in air and size: 45 to 60 kg (depending on the model) /
200 cm length x 20 cm width
- Operating depth: 600 m
- Endurance: 8 to 11 hours , depending on the model
- Maximum speed: 5 knots
- Applications:
These machines share the same architecture and perform similar
functions as the 300 S, 300 Cs, and 300 CXs. The main difference is
that the 600 Series can descend to 600 m instead of 300 m with
the 300 Series. Another difference is that the machines of this
series are slightly more voluminous, allowing for additional internal
space.
- Website link: https://www.eelume.com/eelume-s-series
